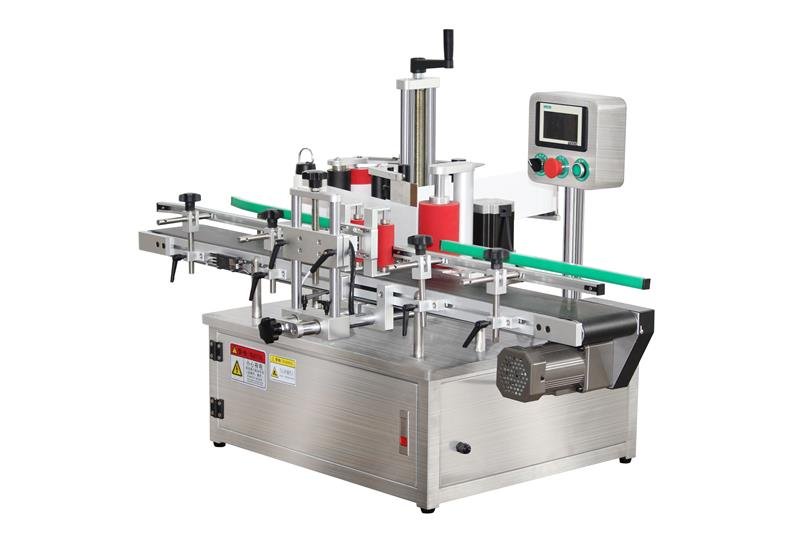

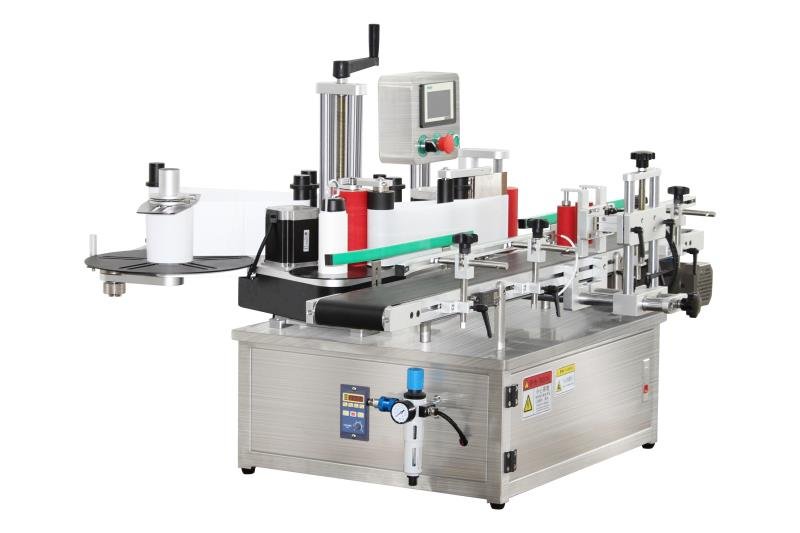

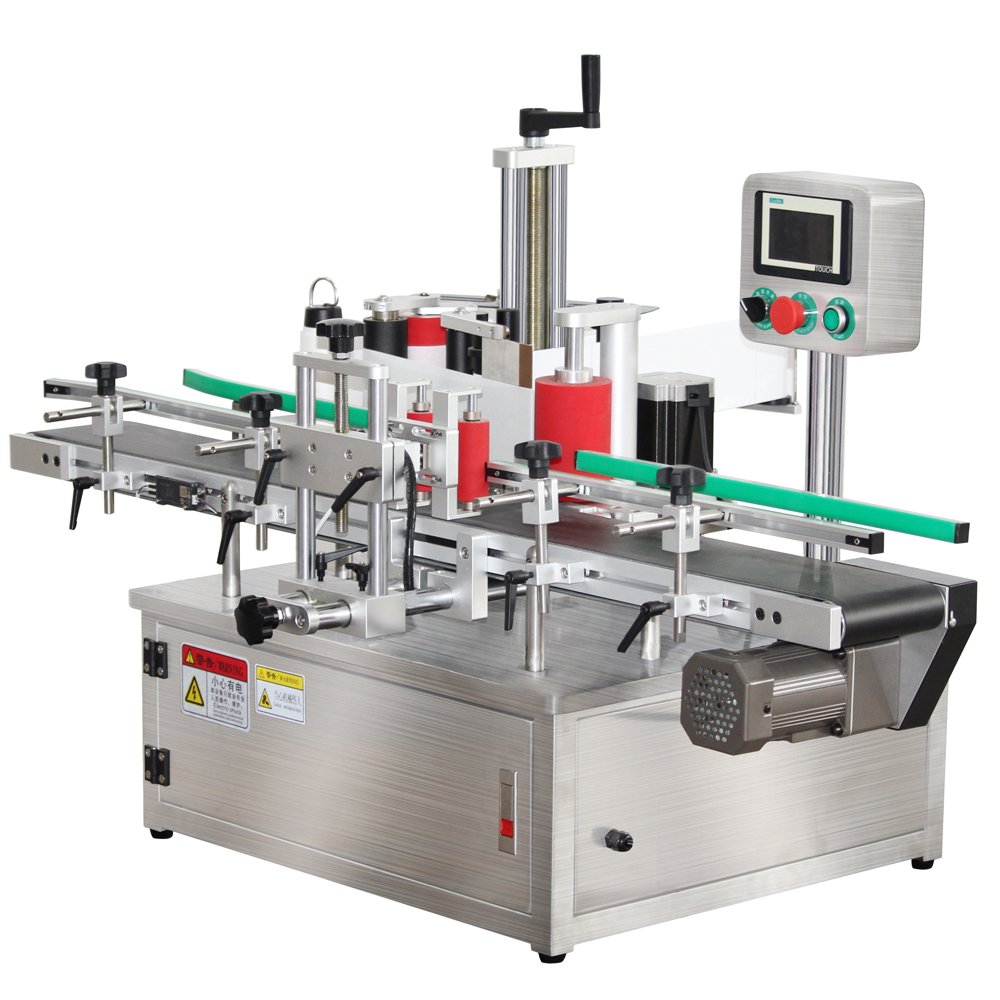

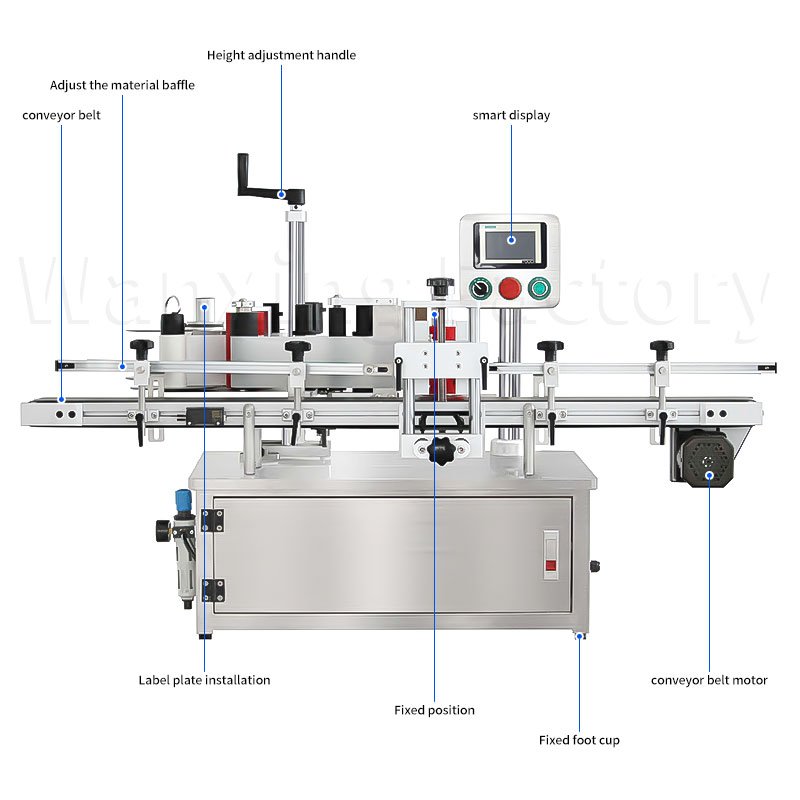

Model Name: ALB-320 (Desktop Fixed Point Round Bottle Labeling Machine)

Labeling accuracy:+1mm (depending on the product)

Equipment weight: 130KG

Conveyor speed: 24 meters per minute (adjustable speed)

Production speed: 20-60 pieces/minute

Overall dimensions: L1230 x W1100 x H876MM

Label size: Length: 20-350MM Width: 20-130MM

Product size: Diameter: 40-120MM Height: 30-300MM

Label requirement: inner diameter of label 76mm, outer diameter of label 300MM

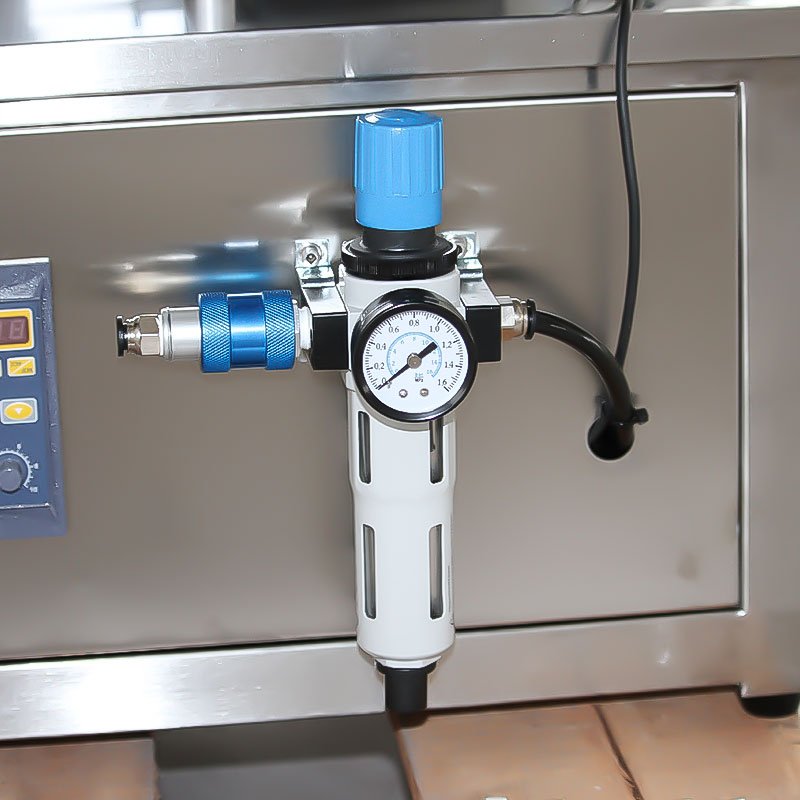

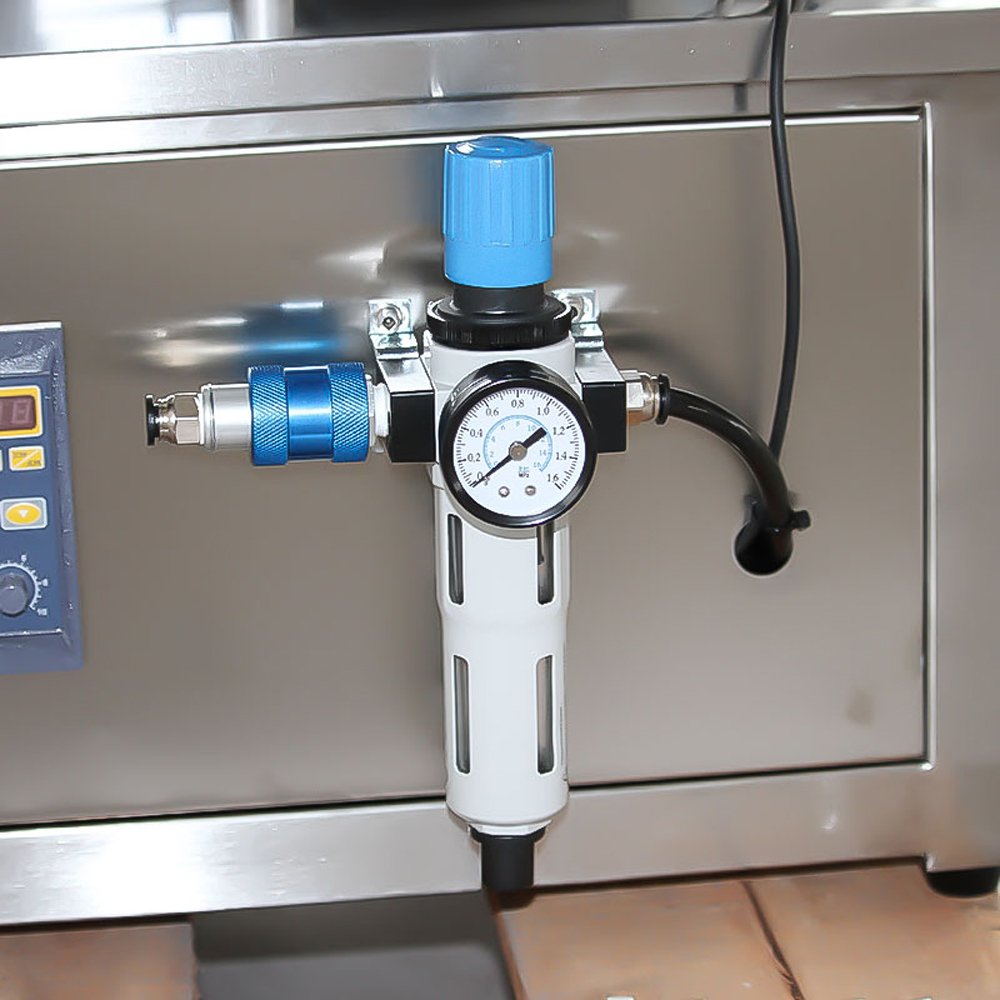

Required gas source: 0.6-0.8MPA

Power specification: 220V/50HZ

Power: 1000w

Device details

Support sample-based customization. Please contact customer service

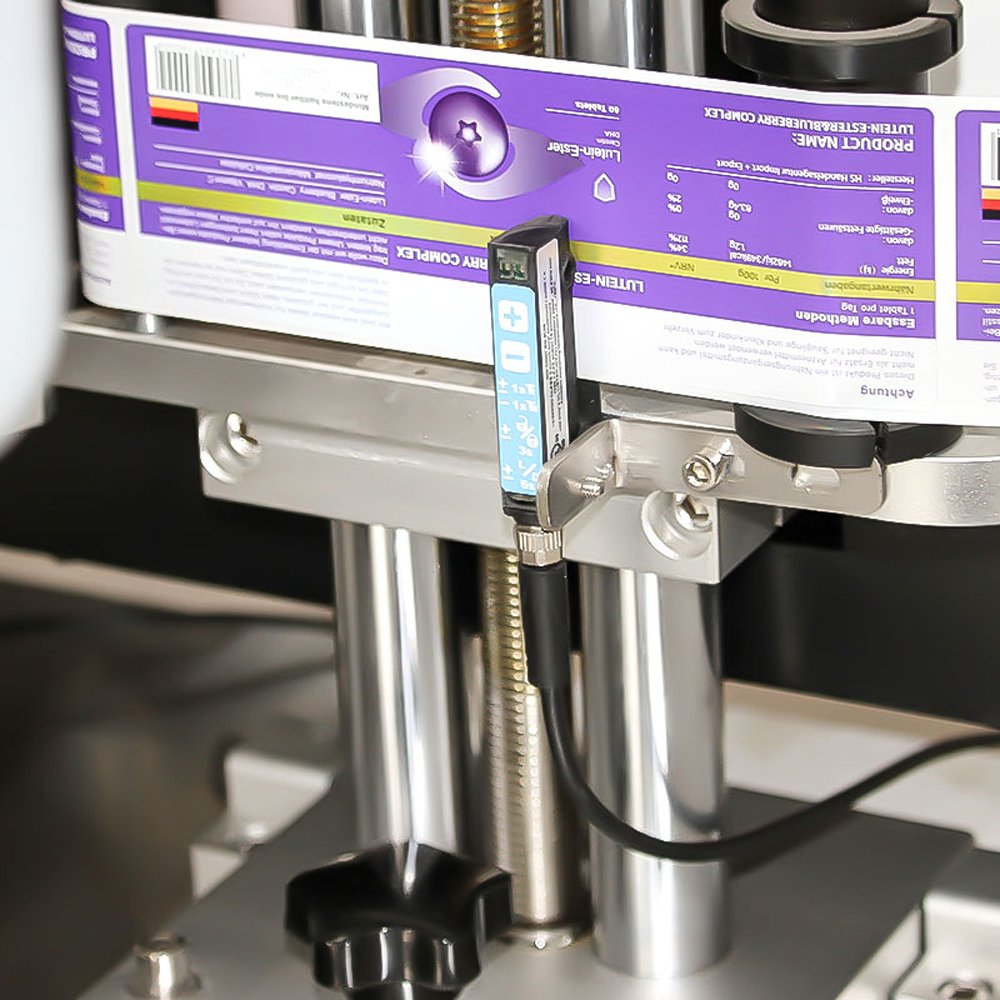

Imported side standard electric clothing

Adopting imported electric clothing, the side labels are precise, stable, reliable, and durable

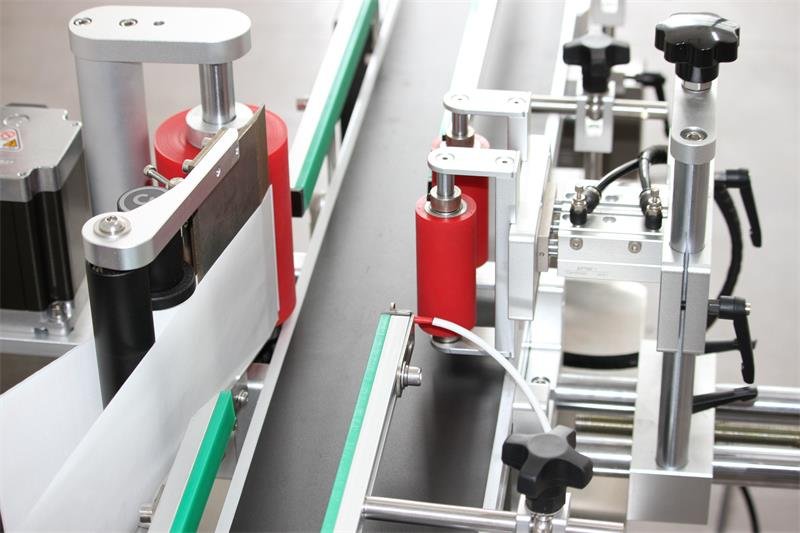

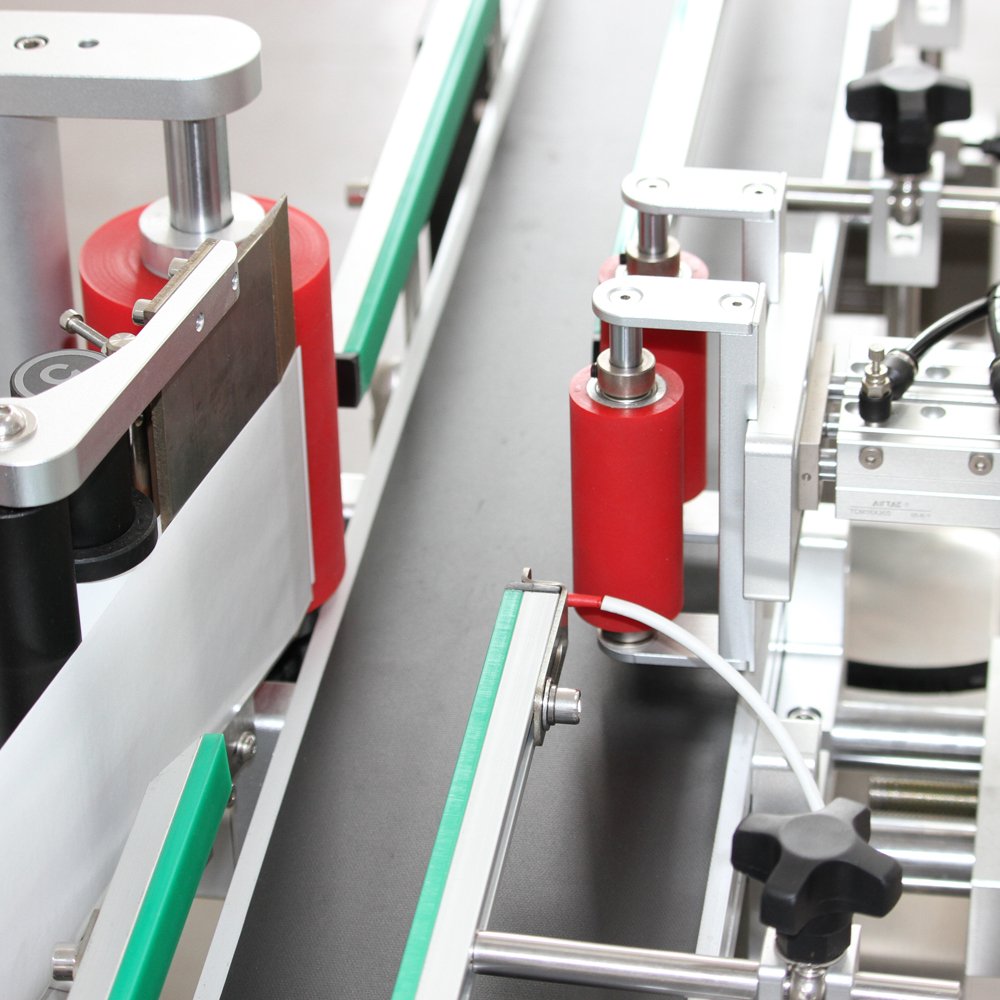

Automatic pressure cylinder

Using a cytinder to automaticaly press down on the product, real-time observation of the machine's alr pressure status, and adustable presure skze when

Belt conveyor belt

Smooth delivery. sturdy and wear-resistant

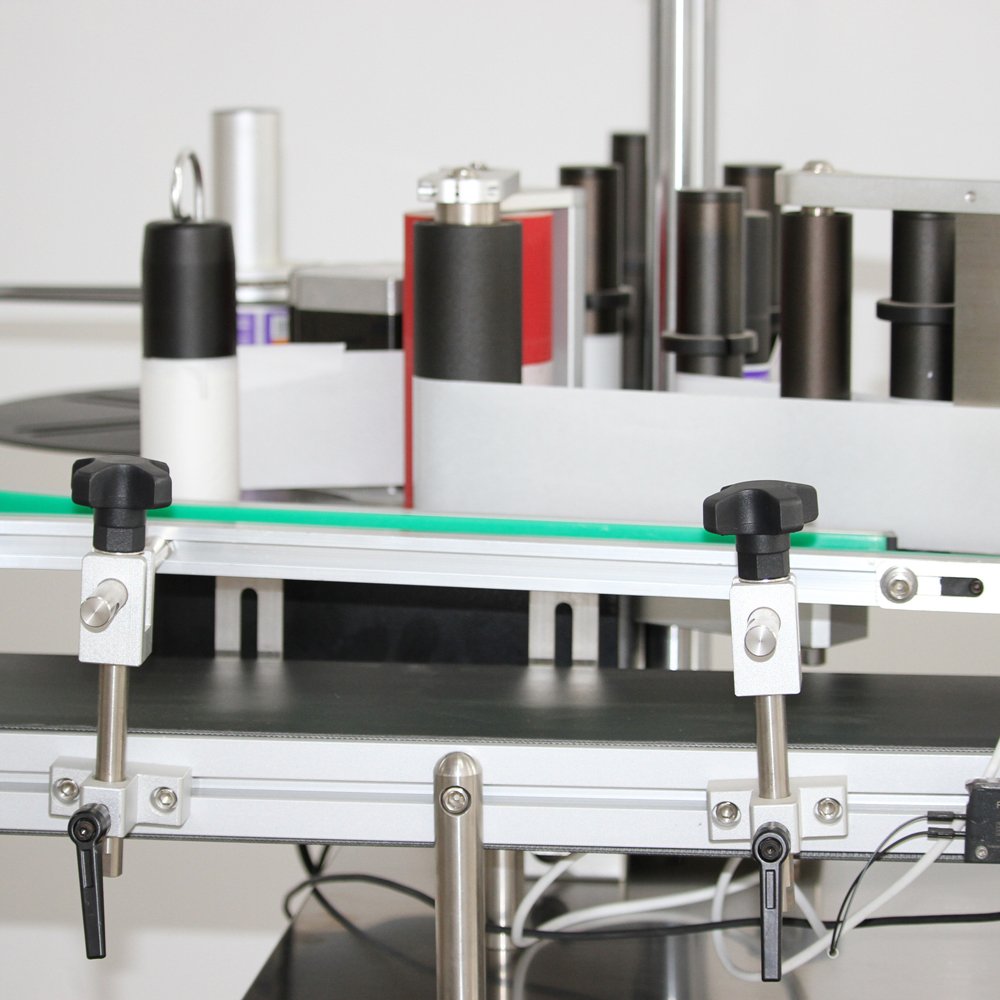

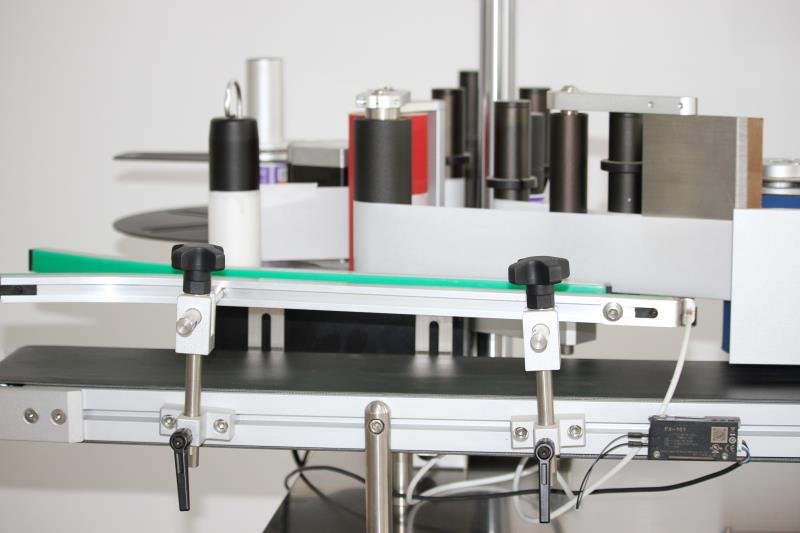

Adjust the width of the baffle

Adjust the width freely according to the customer's product (the maximum diameter can be adjusted to 90MM)

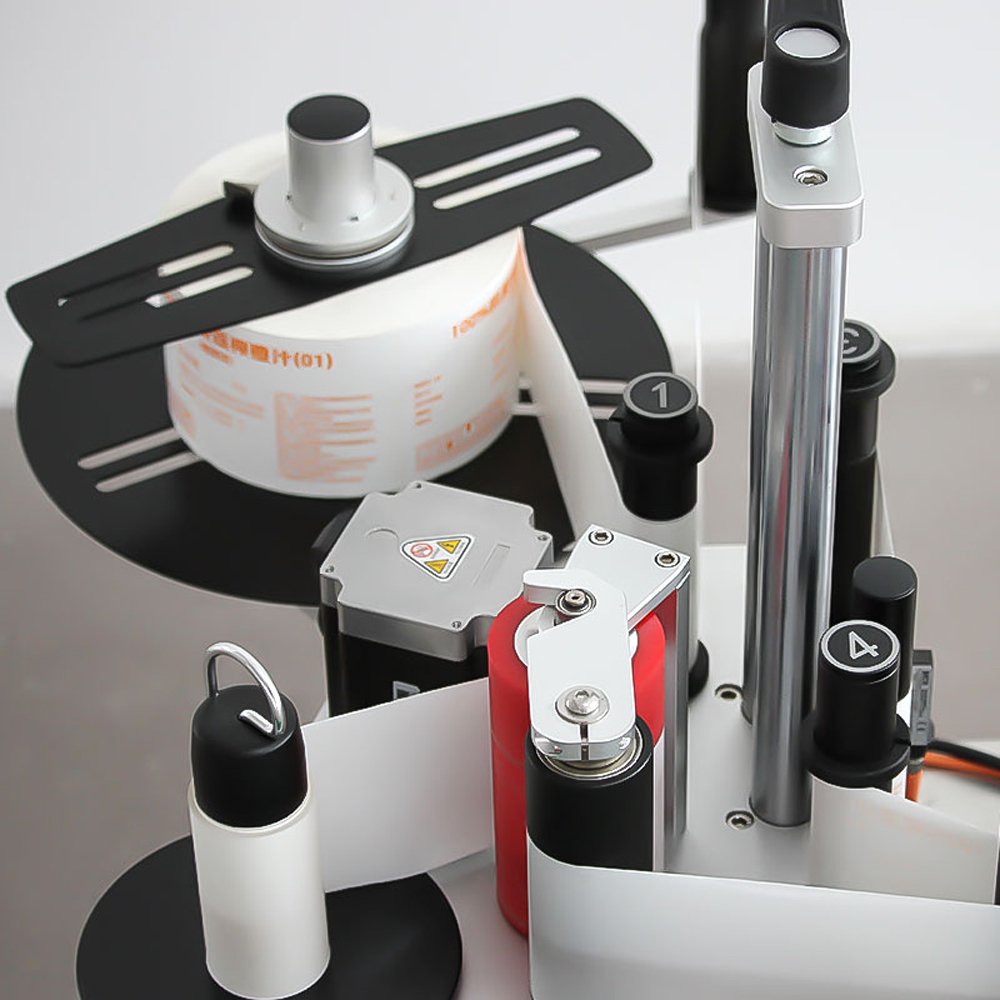

Automatic waste collection

Keep work tidy and can be fine tuned

Product parameters

The detailed introduction is crystal clear
